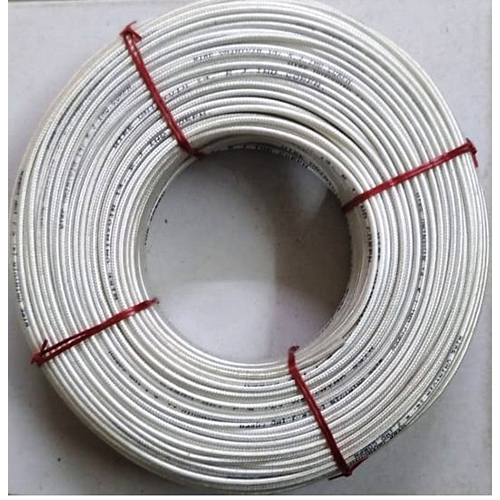

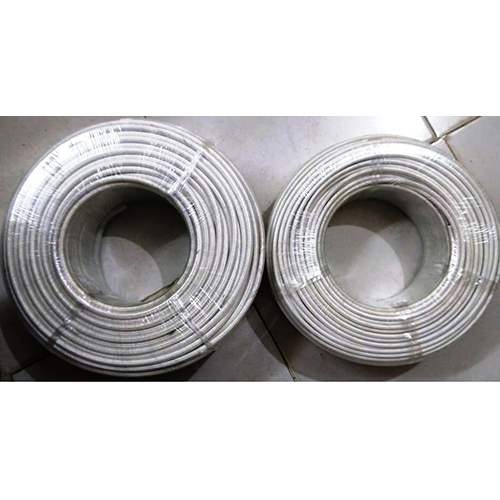

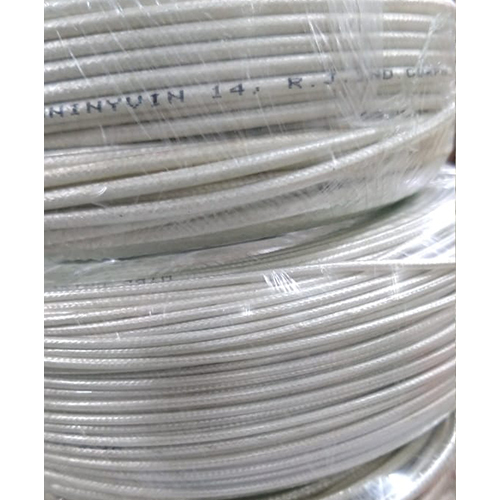

Uninyvin Cables

Uninyvin Cables Specification

Cable Type
Low Voltage Flexible Cable

Features
High Temperature Resistant, Flame Retardant

Insulation
Special Grade PVC

Dielectiric Strength
3.5 kV for 1 min

Operating Temperature
-20C to +105C

Number of Conductor
As required

Conductor Type
Other

Usage & Applications
Aircrafts, Control Panels, Instrumentation

Diameter
As per cable size

Tensile Strength
High

Install Type
Fixed and Flexible Laying

Weight
As per specification

Rated Temperature
Up to 105C

Core Number
Single & Multi-core

Conductor Shape
Round

Core Material
Copper

Product Type
Uninyin Cables

Length
100 Meter (m)

Voltage
1100 V

Insulation Material
Special Grade PVC

Application
Aircraft Wiring, Industrial Control Panels

Conductor Material
Annealed Tinned Copper

Jacket Material
PVC

Storage Temperature
-20C to +60C

Jacket Color
White

Dimension (L*W*H)
Custom as per requirement

Material
Copper, PVC

Color
White

Size
0.5 sqmm to 10 sqmm

Uninyvin Cables Trade Information

Minimum Order Quantity
100 Meters

Supply Ability
3000 Meters Per Day

Delivery Time
1-4 Days

Main Domestic Market
All India

About Uninyvin Cables

Uninyvin Cables, has superior properties, ifcompared with PVC cables, it has1. Low weight ratio, for a given current, nearly 1/3is cross section used for similar current capacity.
High temperature range, from Minus 30 deg 0C to 105 deg 0Ccompared to conventional PVC cable, and from20 deg C to 70 deg C
Cost effective, due to less size
Abrasion Resistance - Good
Mechanical Strength - High
Resistance to Oils, Fluids, Alkalies, and Fungus growth
High Fire Retardancy
The conductor is tin plated so, solderability isgood and oxidation of conductor is protected.

Part number	Uninyvin cable	Size (mm)	Conductor Diameter max	Cable dia mm		Conductor resistance	Max current rating
RJ part no.	Type	Sq. mm	mm	max	min	ohm/900 meter max at 20 deg C	Single core in free air
1701 00 22	22	0.347	0.838	2.0	1.8	49.66	11
1701 00 20	20	0.566	1.04	2.3	2.0	30.95	14
1701 00 18	18	0.966	1.32	2.5	2.3	17.82	18
1701 00 16	16	1.170	1.55	2.8	2.5	14.70	21
1701 00 14	14	2.050	1.95	3.4	3.0	8.41	31
1701 00 12	12	3.220	2.43	3.8	3.5	5.35	43
1701 00 10	10	5.330	3.15	5.0	4.6	3.23	61
1701 00 08	8	8.760	4.24	6.3	5.9	1.97	87
1701 00 06	6	13.300	5.54	7.5	7.3	1.30	115
1701 00 04	4	21.500	6.90	9.3	8.8	0.802	160
1701 00 02	2	33.300	8.76	11.0	10.5	0.515	200
1701 00 01	1	40.700	9.75	12.2	11.7	0.423	220
1701 11 10	0	53.00	11.0	13.7	13.0	0.325	240
1701 11 00	00	68.300	12.4	15.4	14.6	0.252	270
1701 10 00	000	84.200	13.9	16.9	16.1	0.204	300
1701 00 00	0000	109.000	15.6	18.7	17.9	0.158	350

Reliable Quality and Safety Compliance

Uninyvin Cables meet rigorous standards including IS 694, RoHS, and flammability criteria (IS 10810-53), ensuring long-term safety and compliance in industrial and aviation environments. The cables exhibit low smoke emission, high dielectric strength, and flame-retardant characteristics, providing peace of mind in hazardous situations where fire resistance is vital.

Versatile Applications and Customization

Designed for both fixed and flexible laying, Uninyvin Cables can be tailored in terms of length, core number, and dimensions to suit diverse requirements. Their excellent oil, acid, and alkali resistance, along with temperature tolerance ranging from -20C to +105C, make them apt for aircraft wiring, control panels, and demanding industrial setups.

FAQs of Uninyvin Cables:

Q: How do Uninyvin Cables ensure safety in hazardous environments?

A: Uninyvin Cables are designed with high dielectric strength (3.5 kV for 1 minute), flame-retardant PVC insulation, and low smoke emission, minimizing risk during electrical faults and ensuring compliance with IS 694 and IS 10810-53 flammability standards.

Q: What applications are suitable for Uninyvin Cables?

A: These cables are ideal for aircraft wiring, industrial control panels, and instrumentation. Their flexibility and robust insulation make them suitable for both fixed and movable installations in demanding workspaces.

Q: When should you choose Uninyvin Cables over standard wires?

A: Opt for Uninyvin Cables when you require cables that can withstand higher temperatures (up to 105C), exposure to oil, acids, and alkalis, or need enhanced fire safety and low-smoke characteristics within equipment or confined areas.

Q: Where can you get Uninyvin Cables packaged according to your needs?

A: Uninyvin Cables are available in coils or drums, with optional meter marking on request, and can be supplied through distributors, exporters, and manufacturers across India; online and direct purchase options are provided by leading suppliers.

Q: What process is followed in manufacturing Uninyvin Cables?

A: The cables are produced using annealed tinned copper conductors with special grade PVC insulation and jacket. Manufacturing adheres strictly to IS 694, ensuring each piece is flame retardant, RoHS compliant, and meets exceptional mechanical and electrical standards.

Q: How does the cables bending radius affect installation?

A: With a recommended minimum bending radius of 6 times the overall diameter, Uninyvin Cables are easy to install in both tight and spacious configurations without compromising cable integrity or performance.

Q: What benefits do Uninyvin Cables provide for users?

A: They offer reliable performance in critical applications, longevity due to high tensile strength, greater safety from fire and chemicals, customization for project needs, and excellent compliance with global and national standards.
